Supercharger Kit E24 635csi - 500

Product information "Supercharger Kit E24 635csi - 500"

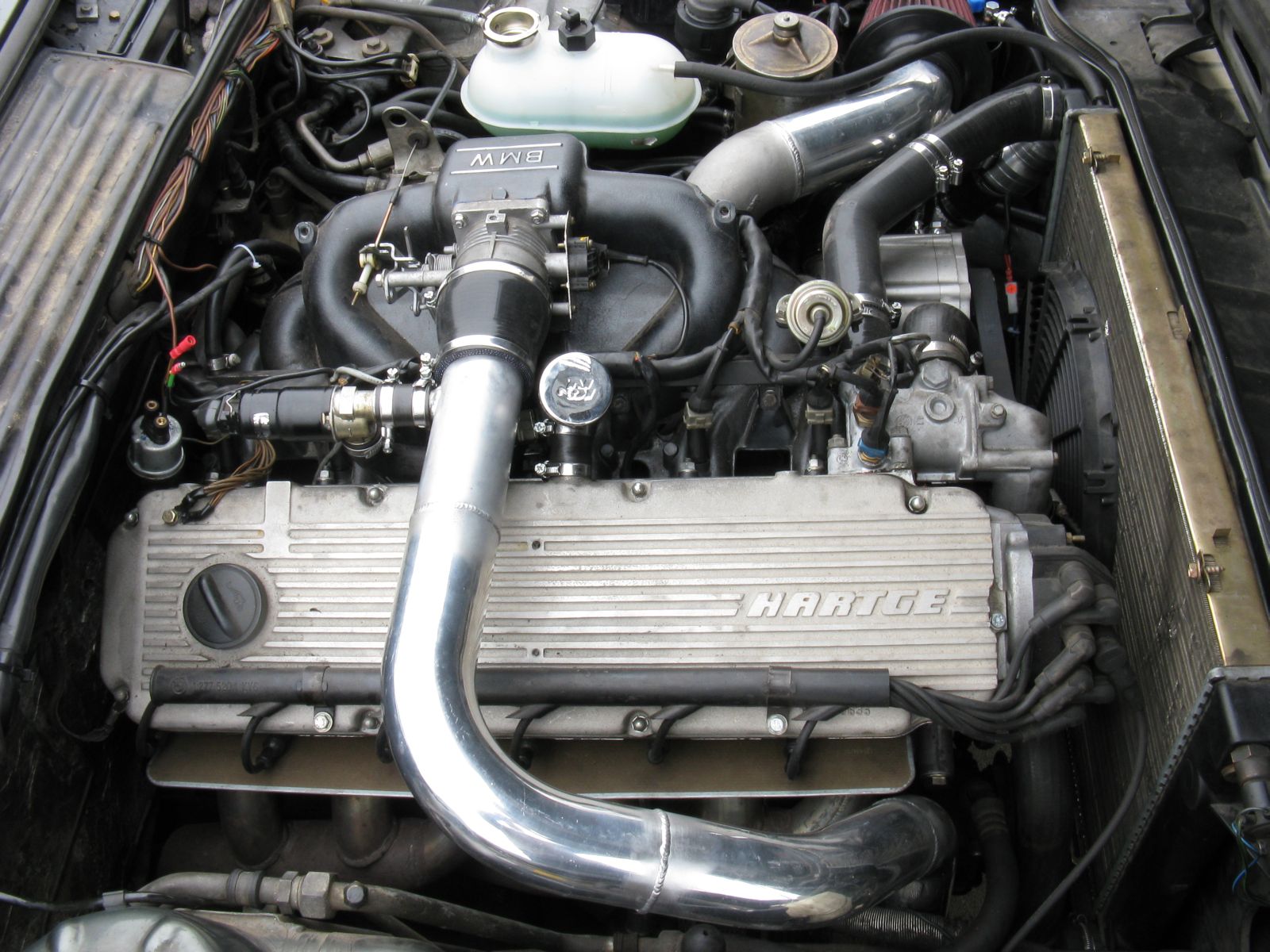

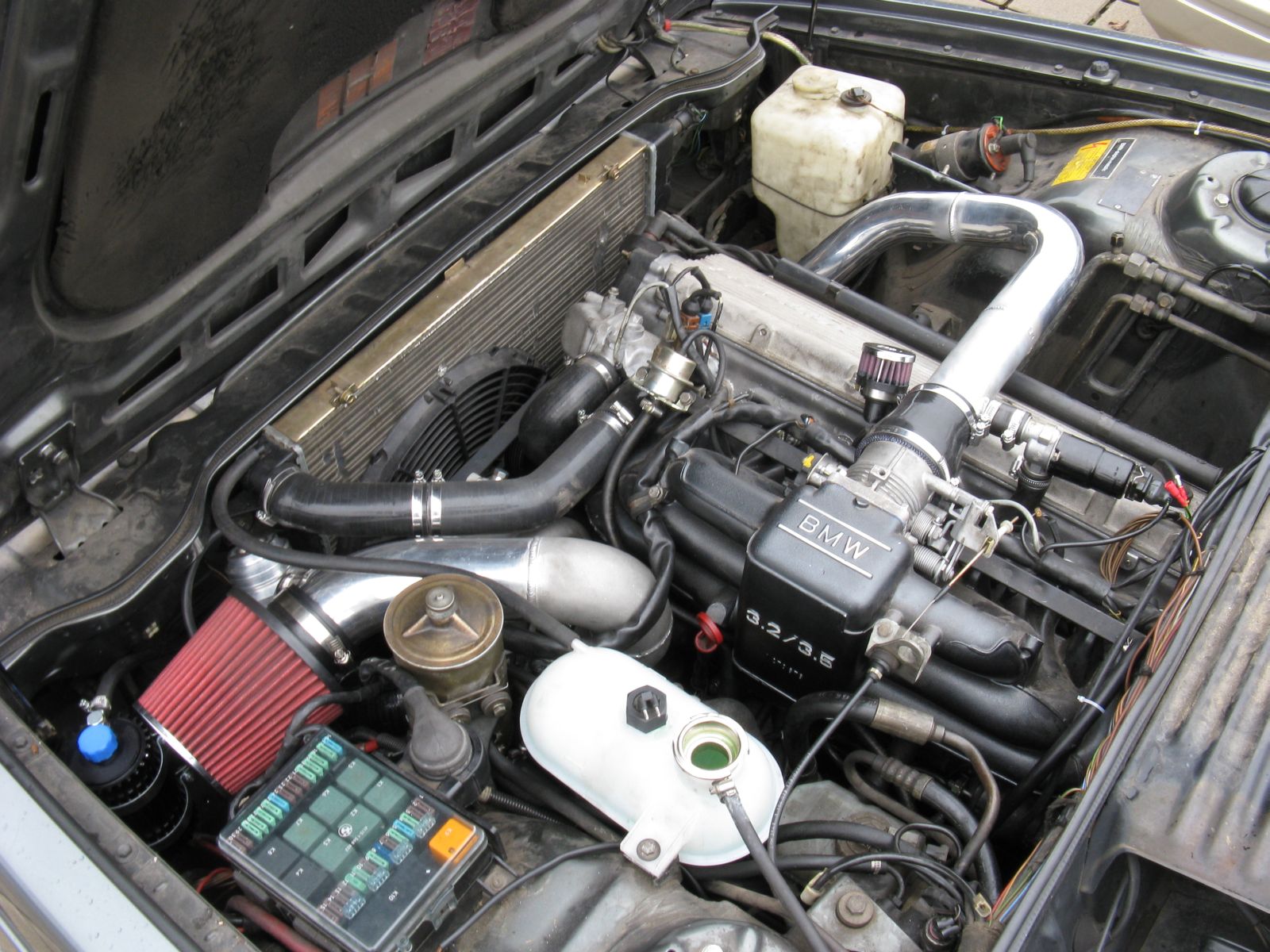

Supercharger kit for BMW E24 M30B35 with Rotrex C38-91 unit
Performance range: 350-500hp

Contents:
  • Supercharger Rotrex C38-91 with 80mm pulley
  • External oilsystem - Expansion tank and lines
  • Mocal compressor oil cooler, 13 rows
  • 1l Rotrex SF150 supercharger oil
  • Bracket system made of high-strength aluminum
  • Idler pulleys and automatic belt tensioner
  • Conversion kit pulleys 6pk
  • Drivebelt 6pk
  • Cold air intake made of aluminum with an K&N filter
  • Forge 40mm blowoff valve
  • HighFlow front mount intercooler 600 x 300 x 76mm
  • Charge air pipes hand made of aluminum
  • Black silicone hoses
  • HD-clamps

The entire belt drive, except for the air conditioning compressor, is converted to the modern 6pk belt.
Advantage: only one belt, better power transmission, no more re-tensioning, smoother running.
All standard functions such as air conditioning, EGR etc. are fully retained.

Recommended modifications to the driveline and peripherals:
  • Standalone ECU Link G4 E24 M30 PnP
  • Spark plugs for compressor operation
  • Bosch 625ccm fuel injectors
  • Walbro 340lph fuel pump
  • Athena headgasket
  • ARP headstuds
  • DP pistons
  • ZRP conrods
  • Reinforced clutch
  • Exhaust headers and larger exhaust system (at least 2x65mm)
  • For road traffic: Schaper CV-set (crankcase ventilation)
Engine: M30
